1986 E42 Center Cockpit Sloop For Sale

Date: January 20, 2013
From: Duncan Griffiths

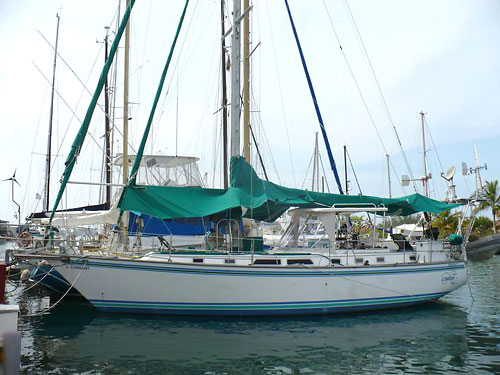

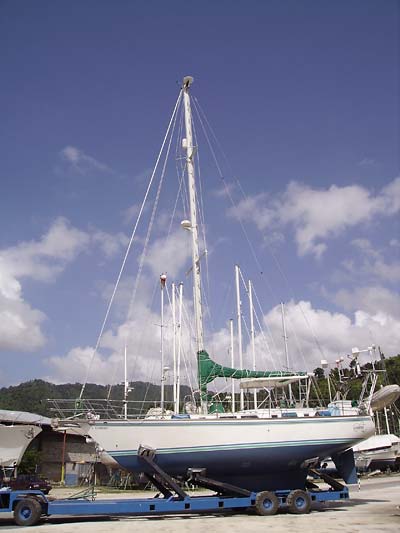

1986 E42 Center Cockpit Sloop in Pristine Condition!

s/v Consort

SPECIFICATIONS
LOA 42' 3'
LWL 33' 4'
Beam 13' 0'
Draft 5' 0'
Displacement 25,000 lbs
Ballast 9,000 lbs
Mast Height 61' 1-½"
Sail Area 788 sqft

Endeavour 42 Detailed Specification Page

Berths 7
Heads 2
Headroom 6' 4"

Power Plant 62 hp Perkins 4-154, excellent cond. (4,100hrs)
Generator 8Kva Kohler with 3cyl Yanmar diesel (2,500 hrs)
Fuel Capacity 75 gallons, 2 tanks (new 2005)
Fuel system Twin Racor primary filters & Algae-X fuel polishing filter
Fresh Water Capacity 90 gallons, 2 tanks (new 2005)
Holding Tank two 15 gallon tanks, macerator pump in fwd head

A fine example of this popular American cruising yacht.  In excellent overall condition and fully equipped for liveaboard blue water sailing.

'S/V Consort' is currently located in the beautiful Guatemalan Rio Dulce and she will be sailed up to Florida in March 2013 if not previously sold.  During the last 7 years the current owners have sailed 14,000 miles to all corners of the Caribbean including South and Central America.

The present owners have invested much time and money maintaining and improving this yacht during their 7 year ownership. Consort is ready to cruise anywhere in the world, and with her 8KVa Kohler generator, 630 AHr battery bank (new 2012), Fourwinds generators, solar panels, and heavy duty watermaker she is perfectly equipped to operate far away from shore-side support.

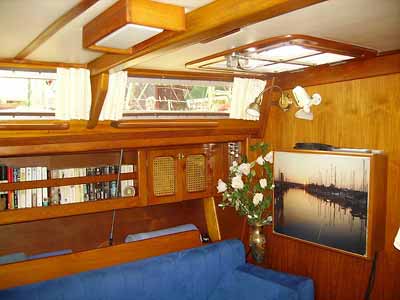

SALOON
The starboard settee extends to provide a small double berth if required. Both settees are fitted with oversized (6'') foam mattresses and covered with 'ultrasuede' which provides excellent protection against accidental spills. Both settees provide comfortable sea berths at the foot of the companionway steps and both have canvas lee cloths fitted.

A teak box/picture frame conceals the 15'' TV and is comfortably viewed from both settees.

On the starboard side of the passageway forward, the existing hanging locker has been modified to provide extra storage above. All hanging lockers are cedar-lined and have internal lights.

'Marine Air' AC Unit (16,000 Btu) with spillover to V-berth

The Hi-Fi system is contained in a locker on the starboard side. It is connected to selectable stereo speakers in all 3 cabins and the cockpit

In addition to the fixed windows (plexiglass replaced and structure strengthened in 2007) the main cabin has 3 opening hatches and 2 Caframo 12v fans

Reading lights at both setees

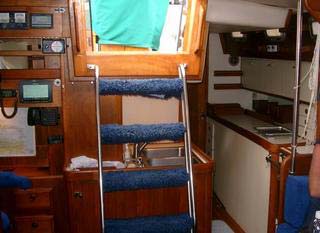

GALLEY
Walkthrough galley with excellent support for cooking at sea

Double bowl sink unit with hot/cold water & separate tap (faucet) providing pure filtered water from the Seagull filter (as used by airlines)

Galley Maid 3 burner gas stove with large oven

Panasonic microwave/toaster oven

Freezer compartment modified in 2010 with additional insulation and highly efficient new 12v Waeco compressor/evaporator unit.  Keeps food deep frozen.

Large cold box storage for fruit and vegetables uses overflow of cold air from freeze

Plenty of storage with plate and cup racks and additional spice racks

3 opening portlights and a 12v fan

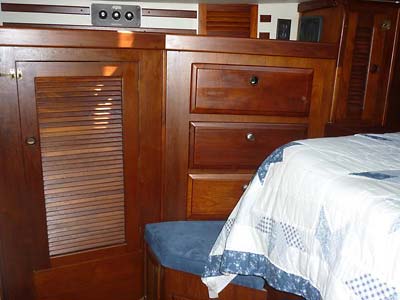

AFT CABIN
Centreline Queen size berth with Tempur-pedic mattress

Air Conditioning Unit (7,000 Btu) with spillover to Galley

Large hatch with security/bug screen

2 opening portlights

2 12v Cafrano fans

Individual reading lights

V-BERTH (FORWARD CABIN)
Large double berth with storage beneath

Custom-built chart storage locker above berth

Raritan 'Icer-ette #85' Ice Maker built-in on port side

Ample stowage for guests in lockers and drawers

Hanging locker provides dedicated storage for tools and spares

Access door to forward head providing complete privacy

1 x Caframo 12v fan

HEADS & PLUMBING
110v Watermaker (new 2006). Custom installation with 2HP Leeson motor driving 20gph CAT pump (capable of filling one 45 gal tank in just 2 hours when generator is running). The ultimate luxury!

2 x 45 gal  s/steel water tanks in bilge below saloon sole with manual switch-over valve  (new 2005)

12v water pressure pump, with manual footpump back-up to galley sink

12 gallon Raritan water heater with 110v element and secondary heating from engine cooling circuit

Hot/cold mixer taps (faucets) in galley and both heads

Filtered (Seagul filter) water to galley and both heads

Forward head compartment with Raritan manual toilet connected to holding tank with macerator pump out - switchable to direct dump overboard when at sea

Forward head has separate large shower compartment (full standing headroom) with 12v shower drain pump overboard

Aft head with Raritan toilet, holding tank, separate shower compartment (currently fitted for use as storage for bedding & towels)

NAVIGATION & ELECTRONICS

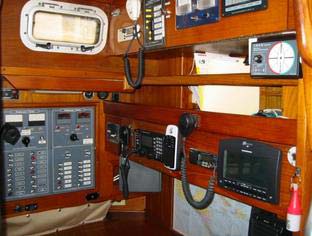

Nav Station
The Nav Station is well positioned at the foot of the companionway on the starboard side. The boat can be navigated from below or in the cockpit. The nav table can take a half-size Admiralty Chart  (paper charts for the entire Caribbean included in the sale) and the table lifts to reveal a storage area for nav instruments and firearms if that is your chosen way of dealing with pirates!

Foldaway custom stool (adapted from a dentists chair), fully equipped for offshore navigation:

Icom 402 VHF DSC radio with remote mic in cockpit & mast top antenna

Back-up Uniden MC-795 VHF with antenna on radar arch (back-up if mast is lost)

Icom 802 SSB with external speaker, NMEA GPS positioning

Pactor 11 (modified to Pactor 111) for SSB email & weather

Garmin GPS 12XL feeding NMEA bus for VHF and SSB positioning

Raytheon 16 nm radar (easily moved to cockpit if required)

Radar warning (shows quadrant display of other ships radar)

Socket for Simrad Autopilot remote controller

Cockpit
Binnacle compass

Stowe Depth and Wind Instruments (original equipment refurbished by UK agent in 2010)

Autohelm Speed/Log

Back-up depth instrument

Icom HM-157 remote VHF controller & speaker

Socket for Simrad Autopilot Remote Hand Controller

Mount for Radar

Garmin 150 GPS (with simple map display)

Sitex Colormax 6 WAAS Chart plotter with AIS, and C-Map card for all Caribbean, Gulf, & USA East Coast (2010)

HULL, DECK, & SUPERSTRUCTURE

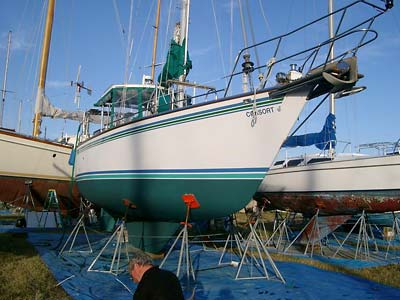

Hull re-gelcoated with newly painted stripes (2012)

Decks strengthened and repainted (2007) - new beams built in under coach roof to provide extra strength to deck for ocean sailing

Substantial custom radar arch incorporating dinghy davits with 12v Rule motor for lowering and raising dinghy

Follow-Me Satellite dish mounted on radar arch (condition unknown - not used by present owners)

Radar arch also supports 3 solar panels, radio and GPS antennas, and tie on for 8 fenders.

Very strong s/steel tube 'lifelines' run from radar arch forward to 'boarding gates' on both sides - lower lifeline also in solid s/s construction providing tie down for deck-stowed jerry cans.

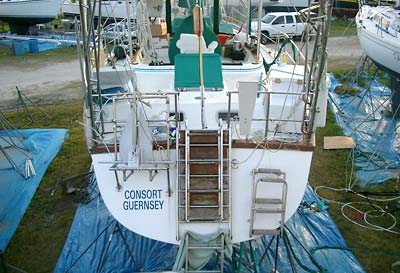

Custom swimming platform folds and stows against transom

A second ladder can be lowered from the waterline to enable man overboard to get back on deck

6 man Switlik liferaft in custom frame on transom, with hydrostatic and quick manual release (condition not known; last serviced 2006)

Man overboard lifesling

Gas locker with 1 x 20lb & 1 x 10lb propane tanks, gauge & solenoid

2 x Custom fibreglass deck boxes providing valuable extra storage

Deck shower on transom cap rail (hot & cold)

2 x Edson outboard motor mounts attached to solid lifeline

Force 10 S/steel BBQ mounted on pushpit

Nylon jack lines (easily removable) attached to deck mounted pad-eyes

Sunbrella covers for all hatches, winches, windlass, &. handrails

Sunbrella sunshades (fore and aft) .

MAST, RIGGING & SAILS
Kenyon aluminium mast with steps to the top

LED Combined Tricolour nav & anchor light

TV dish & Lightning dissipator at mast top

Radar and radar reflector at first spreaders

Granny bars providing support at the mast

S/S rigging with sta-lok fittings (standing rigging/chainplates new 2006)
Fully battened mainsail (new 2012) with Dutchman lines and 'strong track slides' (sail easily raised and lowered single handed)

Sunbrella cover for mainsail (serviceable but nearing end of useful life)
130 Genoa on Profurl N42 Roller Reefing (age unknown but serviceable and regularly maintained)

Staysail on Hood Seafurl Roller Reefing (age unknown but good condition)

Lewmar mainsheet traveller fully adjustable behind cockpit (new 2008)
2 x oversize Lewmar 52 Genoa winches; 2 x Barient 23 Staysail winches
'Winchmaster' electric winch handle

Spinnaker pole on mast track

GROUND TACKLE

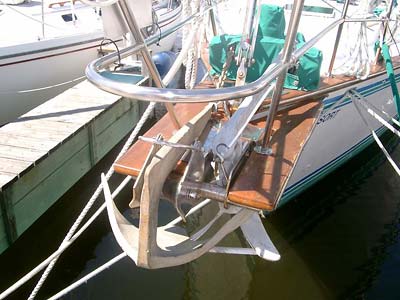

30 Kg Bruce primary anchor with 180ft BBB chain (re-galvanised 2008)

60 lb CQR secondary anchor with 120ft BBB chain/100ft rope (re-galvanised 2010)

Primary and secondary anchors positioned on double roller at the anchor platform and individually controllable by the windlass

Galley Maid HW20 (2HP) electric windlass with 2 x anchor gypsies and separate rope capstan, controlled with foot switches at the anchor platform

Fortress 37 lb high strength kedge anchor stowed on radar arch
Deck mounted S/Steel rope drum with 300ft x 5/8th nylon line (many uses including long line ashore, drogue line, etc)

Deckwash pump providing high pressure wash at anchor platform.

ELECTRICAL SYSTEM
Main panel at Nav Station with AC and DC sub panels

2 x 30A AC banks fed either by Generator or a single heavy-duty 50A  shorepower cable.

8Kva Kohler generator ( Model 8CC0) driven by 3 cylinder Yanmar diesel engine accessed under companionway steps (2500 hrs)

Heart Freedom 2500 Charger/Inverter

6 x Trojan T105 deep-cycle House Battery Bank in fibreglass battery box (total 630 Ahr) - new 2013

2 x Bosch 110 CAmp Starter Battery Bank, separately charged (via Guest #2610 - 3 stage smart charger) - new 2012

Link 2000 battery monitor for both battery banks

9 x Siemens solar panels (Total 420W - max input 22 amps)

2 x Fourwinds 11 Wind Generators (max input approx 25 amps)

Smart regulator for combined wind/solar input switchable to either
House or Start battery bank

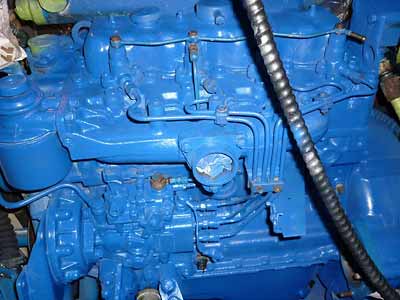

ENGINE & TRANSMISSION
62HP Perkins Diesel 4-154 (4100 hours) in excellent condition

New freshwater and raw water pumps (2010)

Hurth reduction gearbox (reconditioned 2005)

1 1/4'' s/s drive shaft - new cutless bearing 2006

Dripless shaft seal

16'' 3 blade bronze prop

Balmar 91-100 high output alternator

FUEL SYSTEM
2 fiberglass fuel tanks (new 2005) each switchable independently to both engine and generator.  Total internal fuel 75 US gals

Two Racor primary filters with flow gauges (switchable underway)

In-line Algae-X magnetic fuel polishing system

Portable 12v fuel transfer pump (used for transfer and polishing)

COCKPIT
Comfortable cockpit with teak drinks holder and folding teak table.  Large enough for 6 to 8 at sun-downers but compact enough to allow the crew to brace when well-heeled.

Custom hard sunshade (bimini) constructed of fibreglass with integral insulation covering the whole cockpit.  Ladder access from both sidedecks and 6 solar panels on top.

Sunbrella/plexiglass sprayhood (dodger) with liftable centre panel.
Side-panels are easily rolled up but can provide complete protection when sailing into wind.

Aft panels are also available for the rear of the bimini, and a complete enclosure is provided when all panels are in place

Sunbrella panels new in 2007.

4 x West Marine folding cockpit cushions

Edson binnacle; Destroyer style wheel with comfortable suede leather cover.

Single lever throttle and gear control to the side of the pedestal
Helmsman's chair (removable) with stud-fastened cushions

Force 10 gas BBQ rail mounted on pushpit

Cockpit speakers for hi-fi system

DINGHY & OUTBOARD MOTORS
Caribe L10 Hard bottom dinghy - 10' 3'' (new 2000)

Evinrude 15HP two stroke. Old but still starts first time!

Tohatsu 3.5 HP two stroke (2007) back-up

Edson mounts for both engines on liferail.

Manual motor lift on radar arch for lifting outboards up on deck

SAFETY & SECURITY
Custom stainless steel security bars fitted, enabling all hatches to be left open at night if required

Main companionway hatch has 3 sets of 'washboards';  hinged plexiglass doors for use with Air Conditioning, s/s security frame with bug screen allowing airflow through main cabin at anchor, slide-in washboards for use at sea in foul weather

Deck flood lights can be switched on from aft cabin

Dinghy lift brings dink 6ft out of the water; this one will not be a thiefs first choice in the anchorage

Sea Drogue for heavy weather sailing

8 'hard' lifevests to meet US Coastguard requirements.  (Personal inflatable lifejackets not included in sale)

Full set of Flares (will be out of date in 2013)

Grab bag stowed behind companionway

West Marine First Aid Kit

ACR Satellite 2 - 406 EPIRB

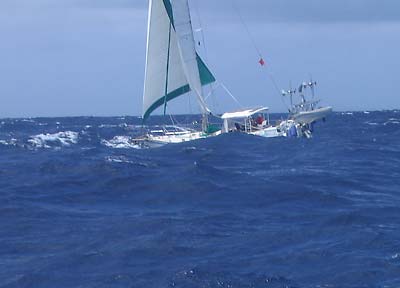

Consort sailing in 30 knots

MISCELLANEOUS
Owners Manual in 2 volumes covering all boats systems

Detailed service record for all systems over last 7 years

Many spares, including Balmar alternator and Perkins starter motor

A full range of s/s nuts, bolts, screws, clevis pins, etc, etc, included

All hand tools and some specialist tools, including heavy duty bolt cutters, adjustable wrenches, and everything required for routine maintenance

4 x West Marine folding cushions for use in the cockpit

The complete boat's inventory is included in the sale. Everything required to set sail, right down to crockery, cutlery, and even towels and bedding if required.

PRICE: US$139,000.00

Currently located in the Guatemalan Rio Dulce. She'll be sailed to Florida in March 2013
