1979 Endeavour 37 A-Plan Cutter For Sale —SOLD
Date: April 27, 2015
From: Greg Parks
T} 361-589-9587
s/v Prelude
SPECIFICATIONS
LOA 37' 5" + factory bowsprit: +30"
LWL 30'
Beam 11'7"
Draft 4'6"
Displacement 20,000 lbs
Ballast 8,000 lbs Internal Lead
Mast Height above DWL 46'0"
Rigging Masthead
Sail Area 580 sqft Cutter Sloop
Main Sail Area 258 sqft
Fore Sail Area (100%) 322 sqft
SA/D 12.59
B/D 40%
D/L 331
Capsize Ratio 1.71
Motion Comfort 36.43
Hull Speed 7.34kts
*for explanation of these numbers check http://www.tedbrewer.com/yachtdesign.html
PHRF Galveston Base 186 Corr 6

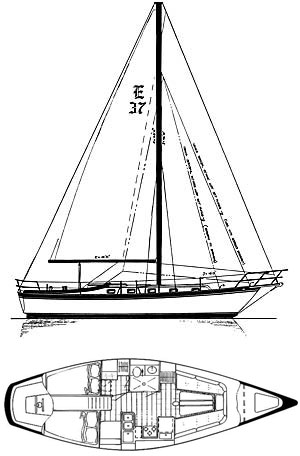

Layout Plan-A
Berths 6
Cabins 3
Heads 1
Headroom 6'6"
Power Plant Perkins 4-108 Diesel
Fuel Capacity 55 gallons
Fresh Water Capacity 70 gallons
Holding Tank 15 gallons
EQUIPMENT
• roller furler Jib by ProFurl C350
• anchor windlass, manual two speed, Simpson Lawrence 555
• Lewmar 40 two speed winches
• Lewmar 8 single speed winches on mast
• Spinlock rope clutches on mast, 2 each
• has had the halyards internalized with exit plates, 2 main and 2 jib halyards
• has the working factory bowsprit option
• twin anchors at bow, one with chain rode, the other has chain and nylon rode 300'

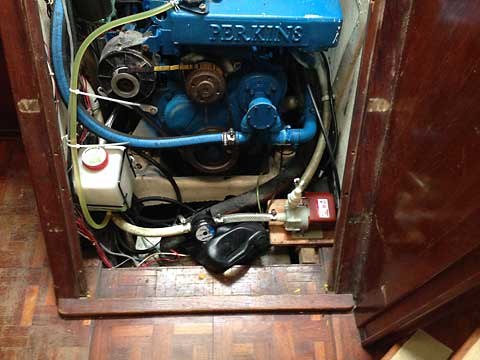

• Perkins 4.108 diesel engine
• Borg Warner Velvet Drive transmission 1:2.57 ratio
• three blade propellor
• 4.5 foot shallow draft
• 20,000 pound displacement cruiser, lead ingot molded into hull
• keel stepped aluminum mast
• autohelm by Navico Wheelpilot 300
• hull is thick solid fiberglass, deck is cored fiberglass
• 55 gallon aluminum fuel tank (approximate)
• 70 gallon polyethylene freshwater tank (approximate)
• wisker pole
• Mainsail with battens and two reefs
• Jib with sunbarrier on edge (about 100%)
• swim ladder aft
• bimini, dodger and mainsail cover blue sunbrella
• boat is white with original blue molded stripe under cap rail.
• teak caprail is finished out with linseed oil (less maintenance but darker)
BELOW DECKS
• air conditioning by Mermaid
• refrigerator with freezer compartment by Norcold
• LPG stove/oven by Magic Chef
• twin double berths port and starboard quarters
• there is a private stateroom on port quarter
• saloon settees can be two single berths FWD

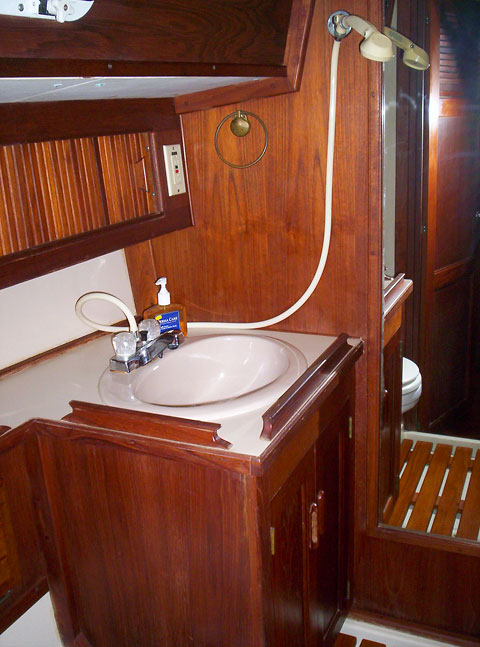

• single head
• navigation station desk
• LED and conventional cabin lighting
REFIT AND HISTORY
by present owner (me)
• Purchased boat in October 2007.
• Survey and yard OCtober 2007• December 2007
• pulled mast for overhaul
• new roller furler, new jib, new life lines, two new halyards by Mark Doyle boatworks, Rockport Texas
• Jan 2008: bottom job, interlux2000 barrier paint (gray) and bottom paint (Red)
• late 2010 / early 2011 kept boat in Corpus Christi and sailed in Bay area.
• New bimini frame and Canvas over cockpit, by Daryl Miglia
• Boat yard 2011: leaking fuel tank,
pull fuel tank, pull water tank, pull engine and transmission
• pull prop shaft
• fresh bottom job sand and paint antifoul (red)
• extensive overhaul in engine, new pistons, bearings, oil pump.
• overhaul kit from Foley Engines.
• new bronze clutch discs and seals/gasket in Transmission
• new oil hoses, engine and transmission
• polyethylene flexible coupling between transmission and prop shaft from R&D Marine
• Wide serpintine belt and pully kit from transatlantic diesels
• Fuel Tank cut off bottom and reweld new section, by Overland Tank and Trailer Abilene.
• New polyethylene water tank
• overhauled anchor windlass, powder coated white
• overhauled steering pedistal, powder coated whit
• new steering cables
• new engine and transmission control cables, throttle and clutch
• welded tabs at Windlass support for a staysail and jacklines
ELECTRONICS & INSTRUMENTS
• Autohelm by Navico Wheelpilot 300
• Garmin GPSMAP 180 at helm
• Garmin GPSMAP 182C at Nav station
• VHF with DSC (Standard Horizon) at Nav Station with RAM microphone at helm
• engine hour meter
• engine tachometer
• engine water temperature
• engine oil pressure
• engine alternator voltage
• engine exhaust hose over temp alarm by Aqualarm
• electric fuel quantity guage
NOTES
This design has a long cockpit that one person can sleep topside while other is on watch. Bridge deck at Companionway offers strength and safety. cutter rigged for a staysail set flying on a long reach (No pesky baby stay). Spacious interior
PRICE: US$25,000.00 — SOLD
Located at Mustang Island Yachts, Aransas Pass, Texas
